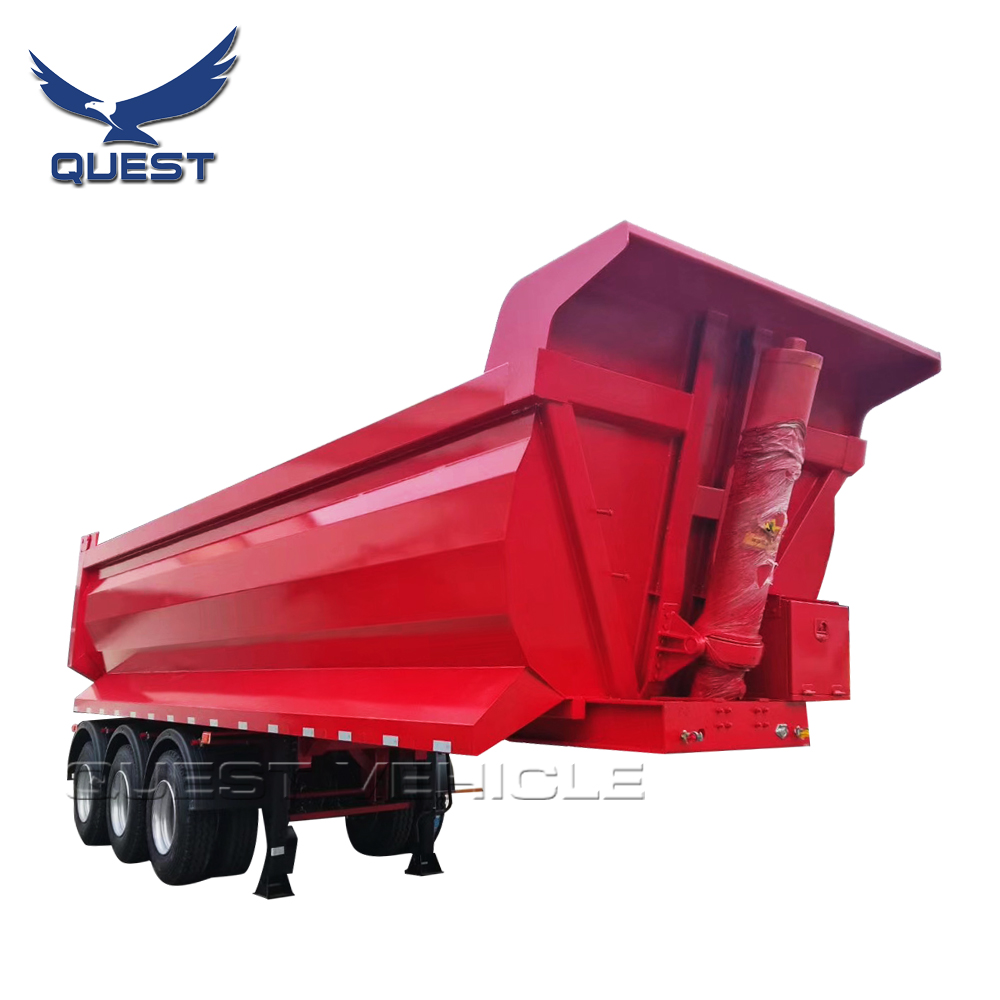

U Shape Rear Tipper SEMI TRAILER DETAILS
This rear tipper dump trailer is used to transport and tipping sand, stone, grain, etc.
1>High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.
2>The most skilled workers make welding of this dump trailer more frequent and strong.
3>Dump box dimensions and U-shape, box thickness, HYVA hydraulic cylinder and optional accessories(two pieces spare tire carriers, water tank, fuel tank, etc.) are all cutomised by different cargo needs which build modern transportation.
Main specifications:
Items | Rear tipper semi trailer QUEST - D50 | End Dump semi trailer QUEST - D80 |
Loading Capacity | 40-50 tons | 50-70 tons |
Axle | 3 pieces, 13T FUWA/BPW axle | 4 pieces, 13T FUWA/BPW axle |
Tyre | 12 pieces, 12.00R20/12R22.5 | 16 pieces, 12.00R20/12R22.5 |
Dimensions(LxWxH) | 9750 to 12000mm x 2500 x 3200mm |
Tare weight | 10 tons to 12 tons |
Axle spacing | 1310mm |
Rims | 8.5-20, 9.0-20 |
Suspension System | Leaf spring suspension / air suspension |
Brake System | Dual line pneumatic brake system with WABCO emergency relay valve |
Main Beam | Height 500mm Q345 |
Chassis | upper 14mm, lower 16mm. Mid web 12mm |
Dump Box Thickness | Bottom 3mm Side2 mm |
Hydraulic Cylinder | HYVA |
Kingpin | 2’ or 3.5’ interchangeable |
Landing Gear | 28 Tons , Two speed manual operation,JOST Optional |
Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard |
Lights and Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
Painting | Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available |
Tool Box | One tool box with a set of standard trailer tools |
Spare Tyre Carrier | One piece or two pieces |
Side Tipper Trailer is also available.
